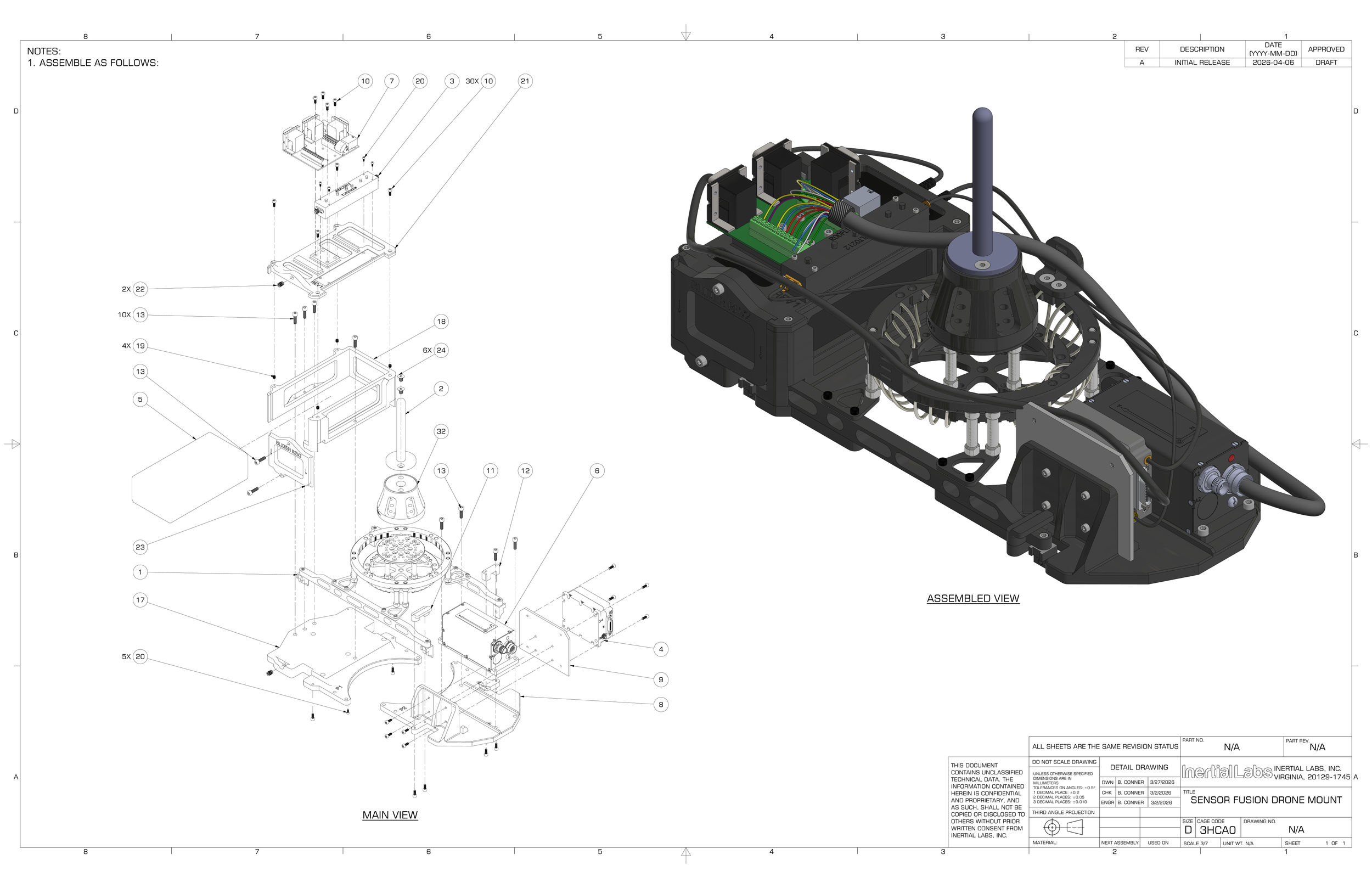

6-Wing Multi-Sensor Fusion Drone Mount

Designed and created a mount compatible with a 6-wing drone that houses:

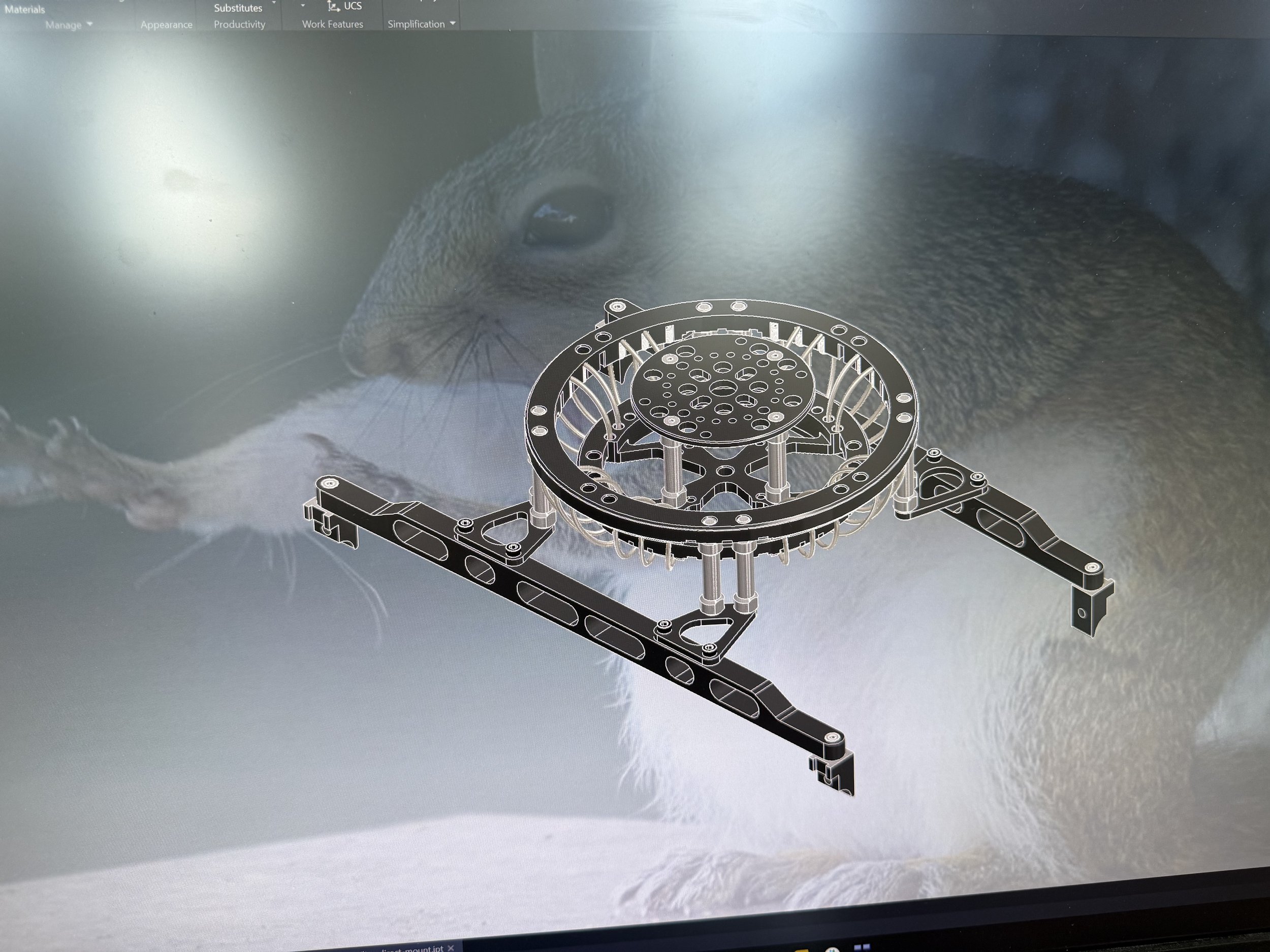

• A fully-custom CAD-designed 3D-printed framing solution.

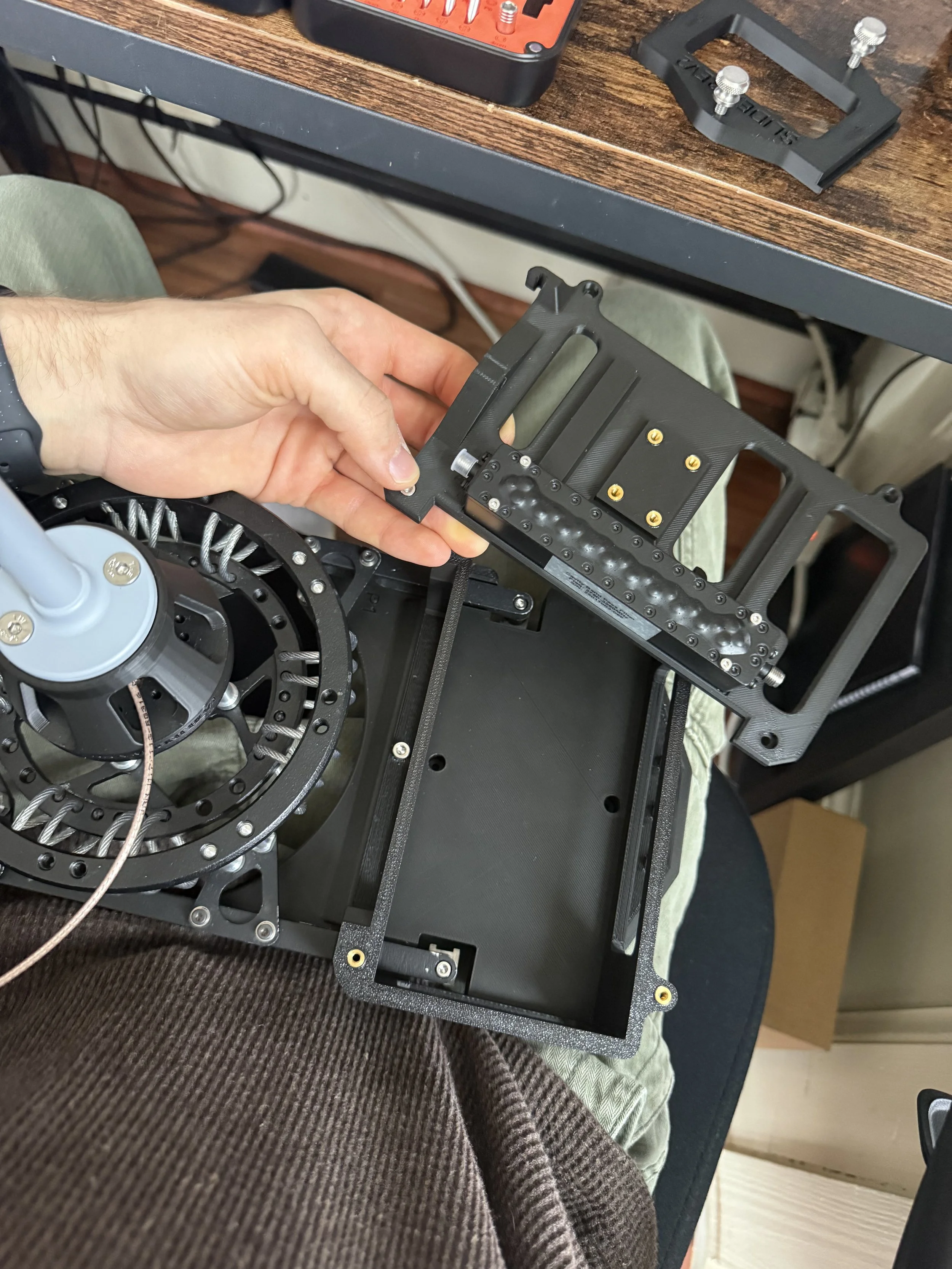

• A modular battery located in a casing with a double-reinforced thumbscrew slider.

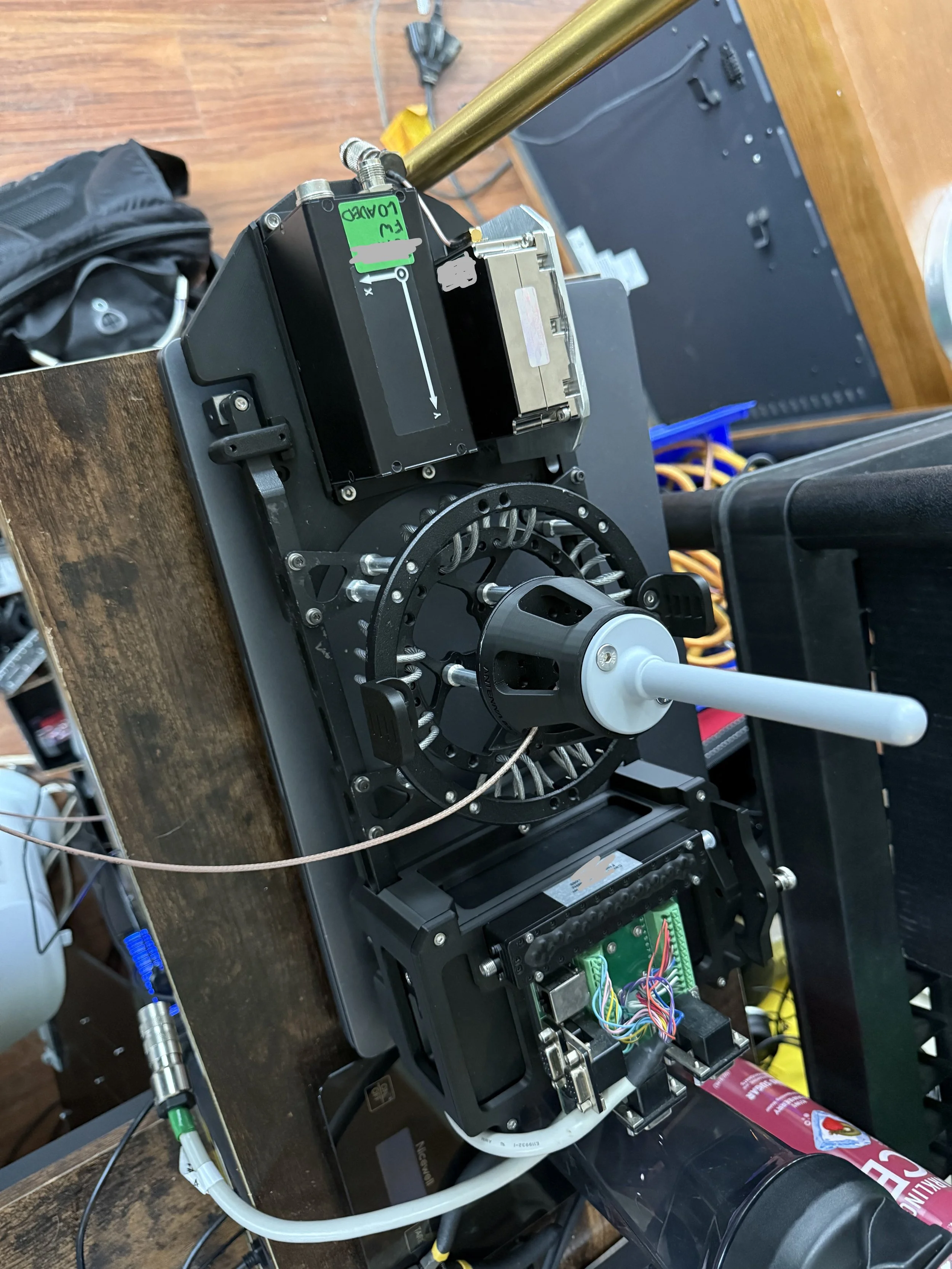

• Inertial Labs INS and a 3rd-party radio sensor mounted on a custom-machined aluminum plate.

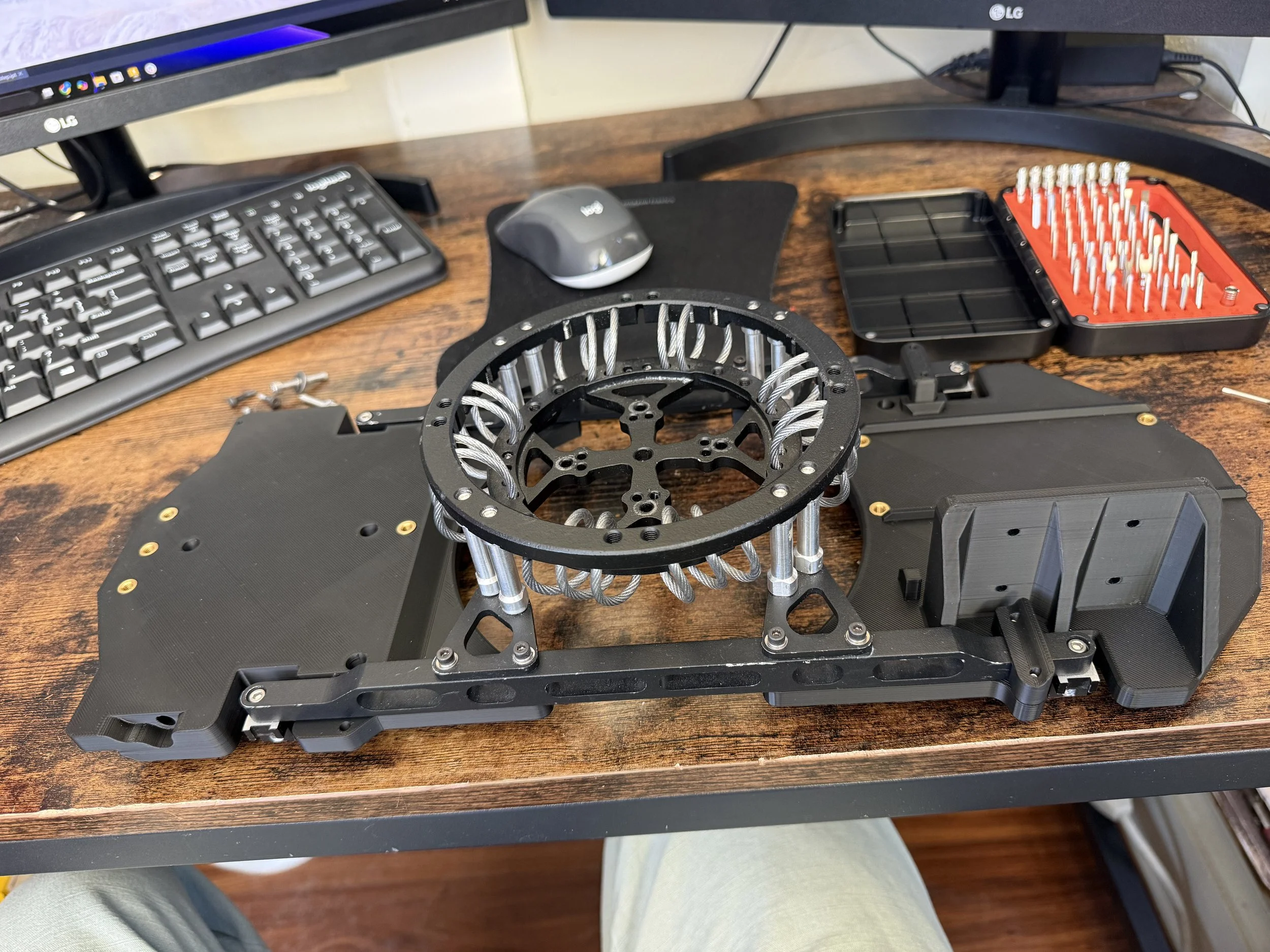

• Custom aerodynamic mount housing an S-band antenna on a vibration dampener. The

• An Inertial Labs interface board and antenna signal amplifier located on the battery housing lid.

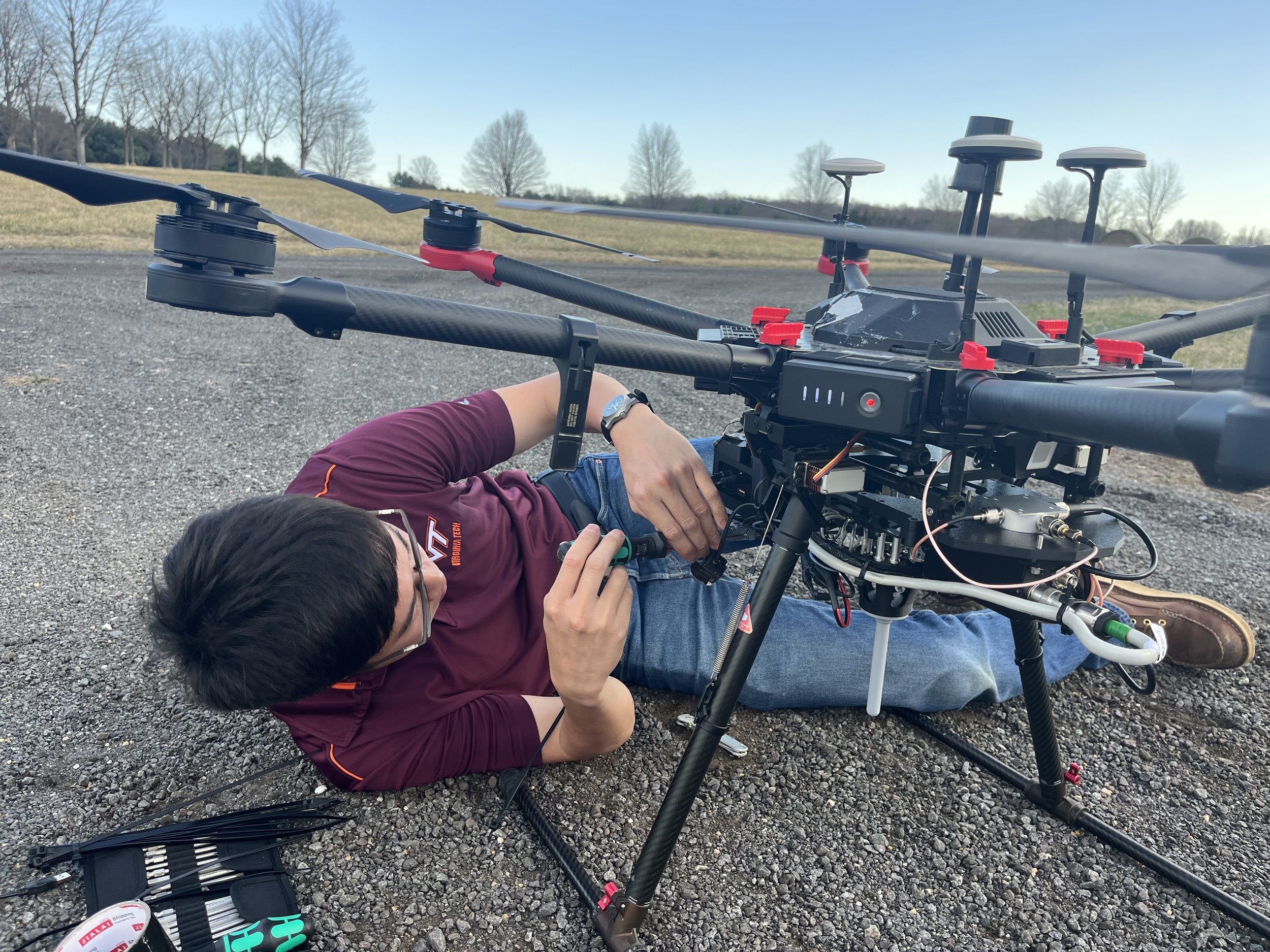

The mount helped produce viable results and a successful test of Inertial Labs devices, as well as sensor integration with a 3rd-party partner.
