Universal Cessna-172 Wing Strut Clamp Mount

Designed and created a mount compatible with a Cessna Wing Strut Mount that supports:

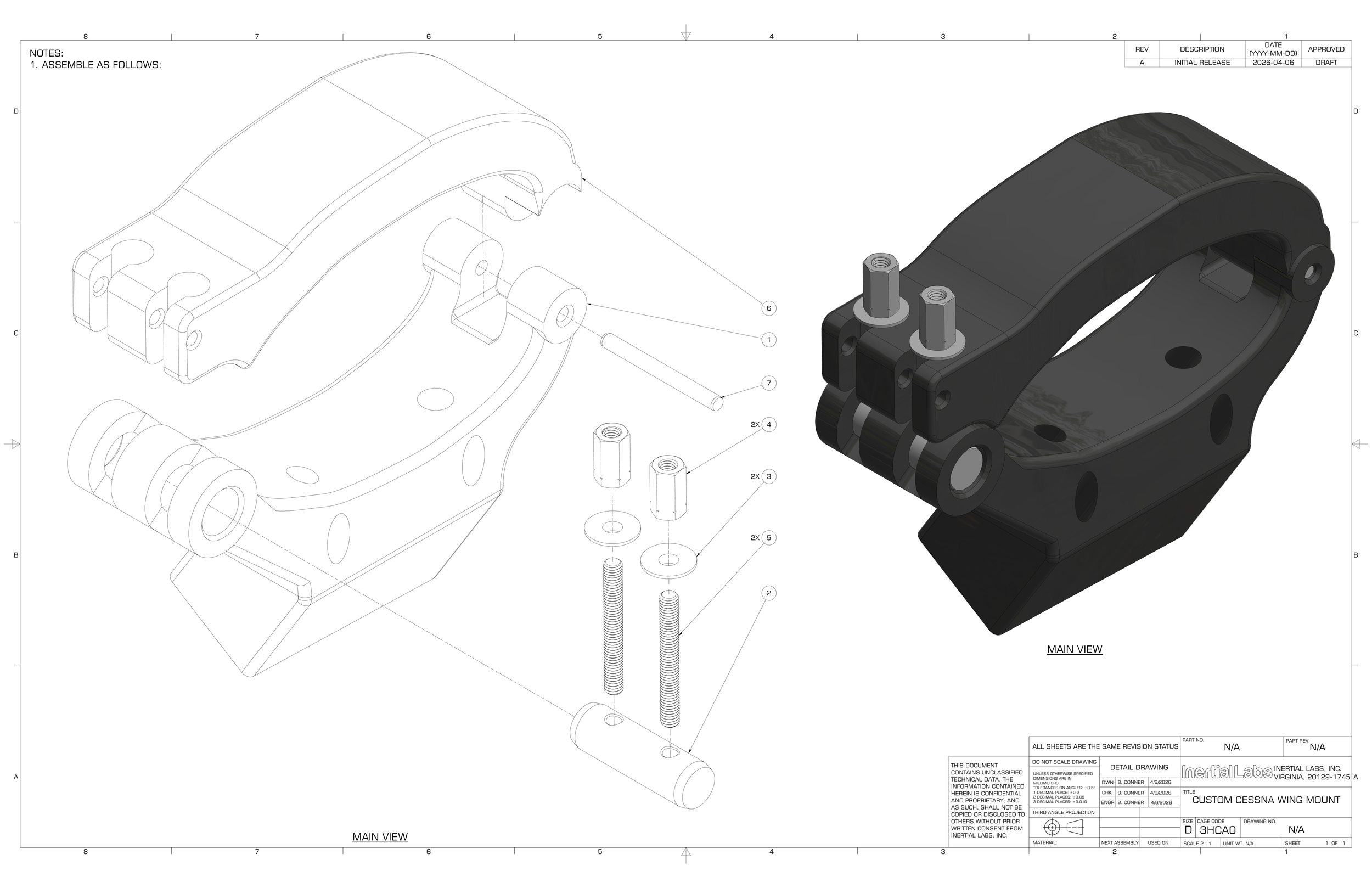

  • A fully-custom CAD-designed PETG body with aerodynamic features.

  • Easy-lock washer and nut fastener system for quick set-up.

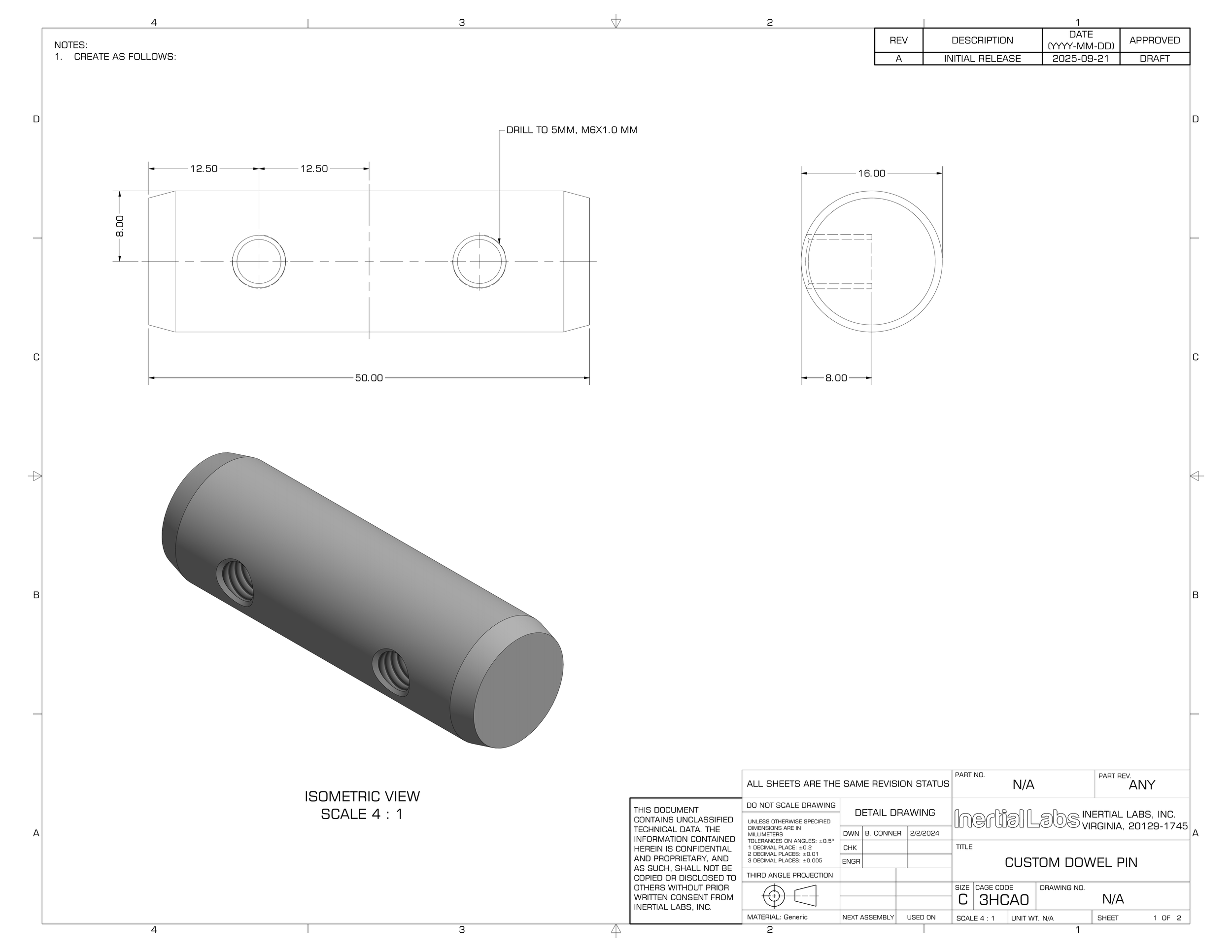

  • Custom-machined dowel pin to support the nut fastener system.

  • 4 standard mounting holes for an expandable design, allowing for the mounting of many Inertial Labs devices in unique orientations.

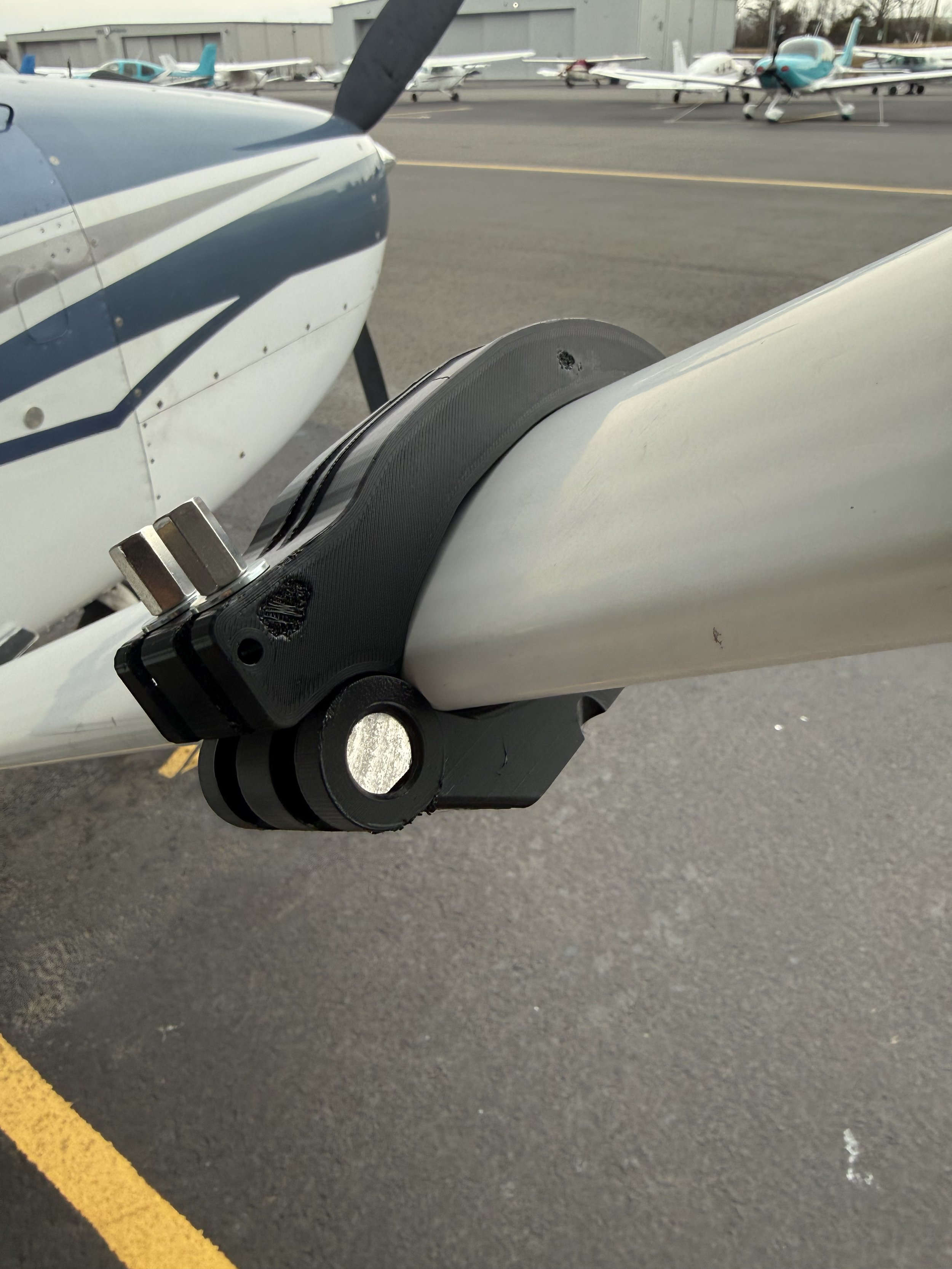

The mount helped produce viable results and multiple successful flight tests of Inertial Labs devices.
