Drive Test Van Antenna Mount

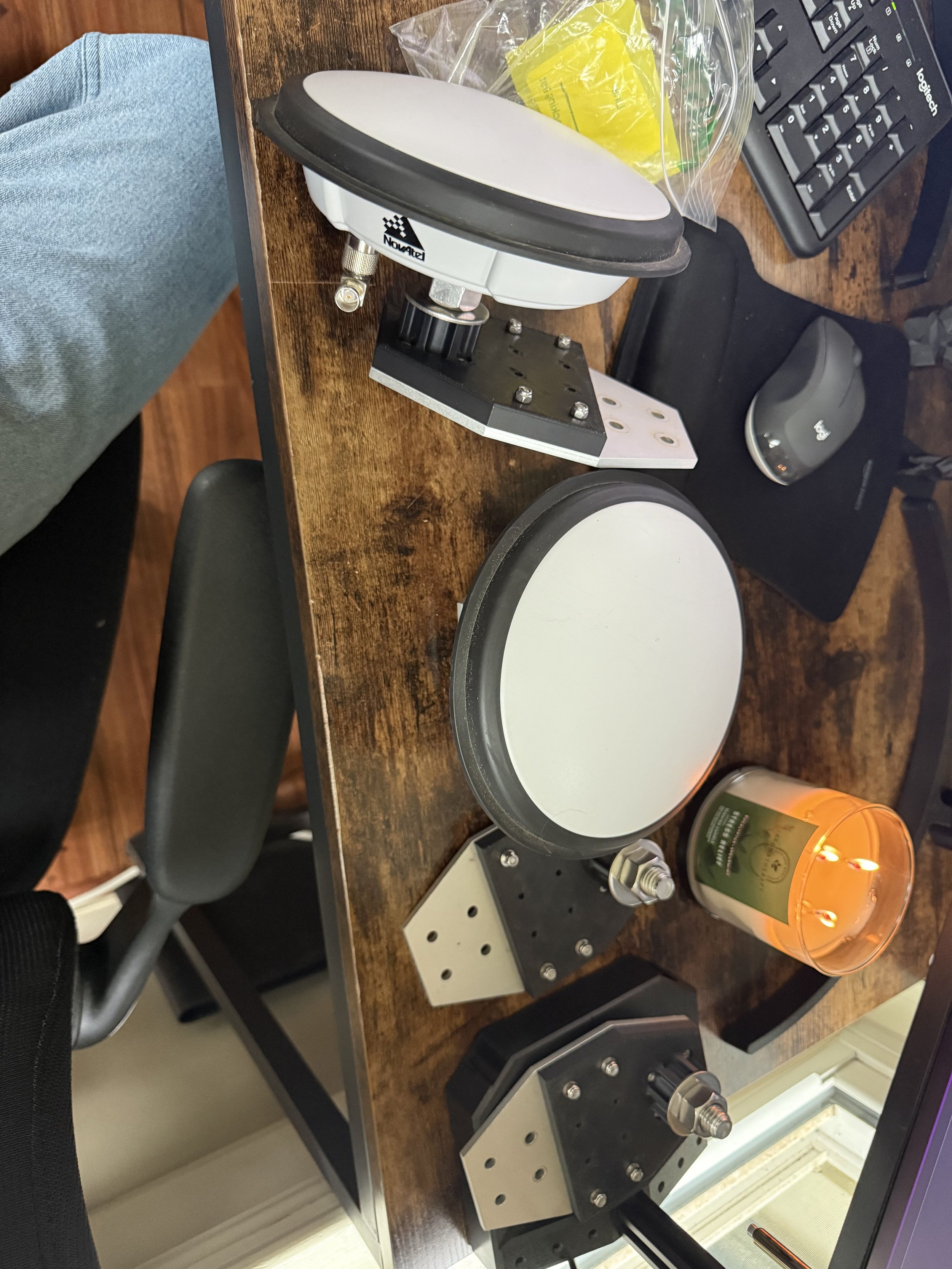

Designed and created a mount compatible with the Inertial Labs drive test van that contains:

  • A fully-custom CAD-designed ASA temperature-resistant spacer component

  • A custom-machined aluminum framing plate

  • A rotating locking mechanism designed to maintain accurate lever-arm positioning

  • Full compatibility with NovAtel GNSS antenna systems

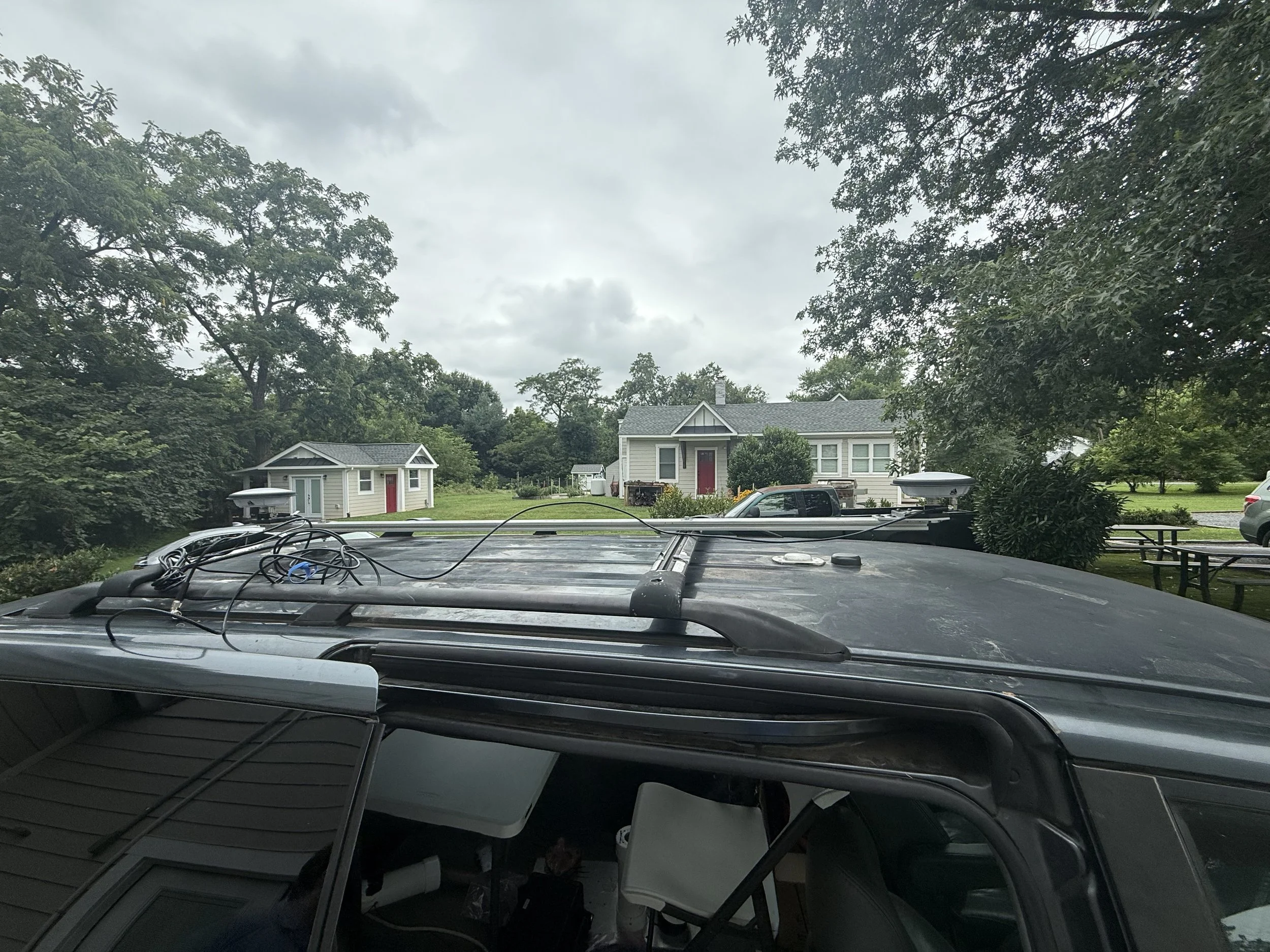

The mounting solution was successfully integrated into production workflows and supported the testing and validation of a large number of Inertial Labs inertial navigation systems.

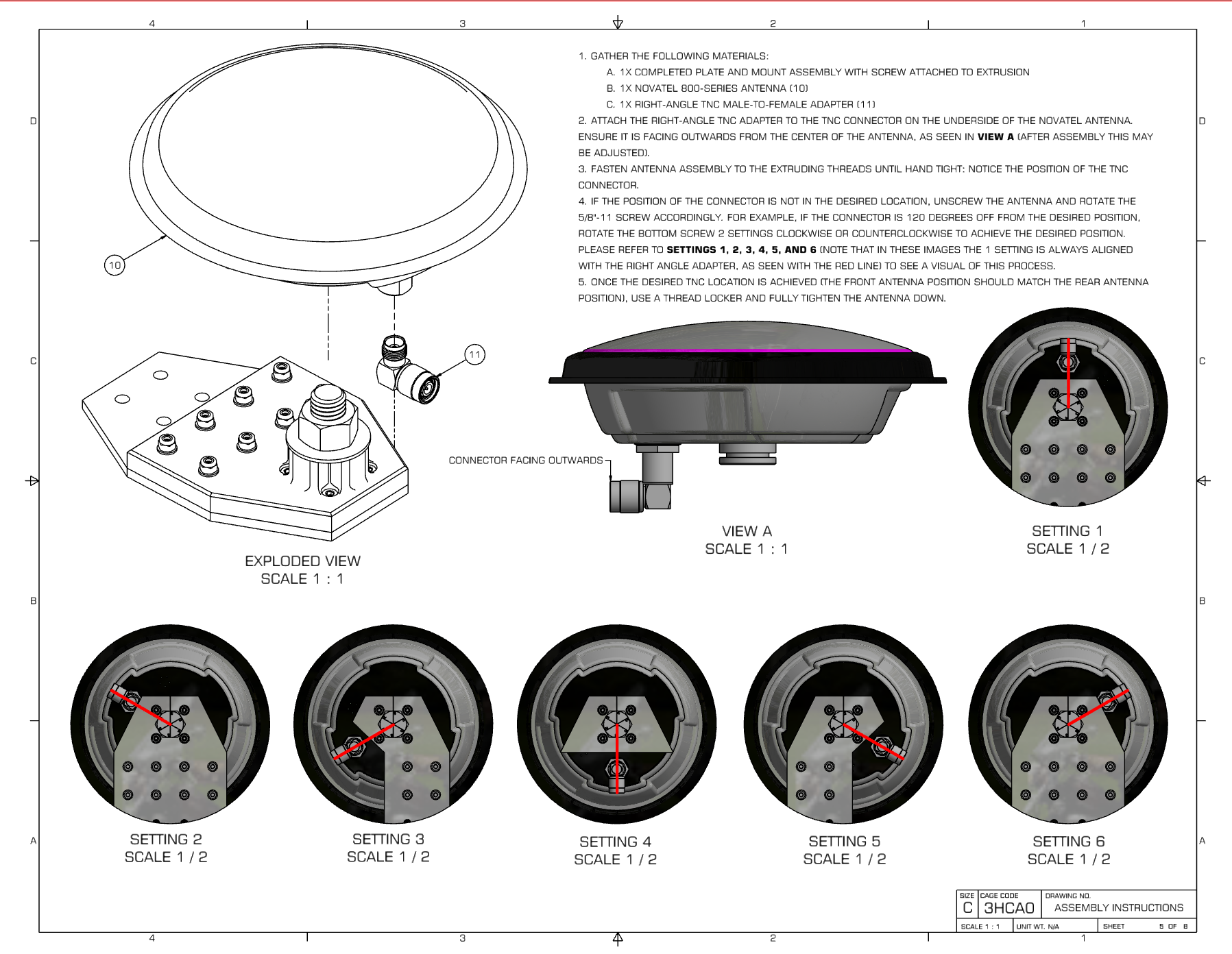

Screenshot 2026-05-21 152852.png
